Industrial-Grade
Hardware
Bisly hardware connects IT and OT across commercial buildings, handling data from sensors, controllers, and building systems while enforcing local security protocols.
BACS hardware made affordable
Scan-to-connect installation. No custom coding. Open Modbus and DALI integration out of the box.
Controllers & Dimmers
DIN-rail hardware that runs locally, connects instantly via QR scan and integrates any third-party device over Modbus or DALI.

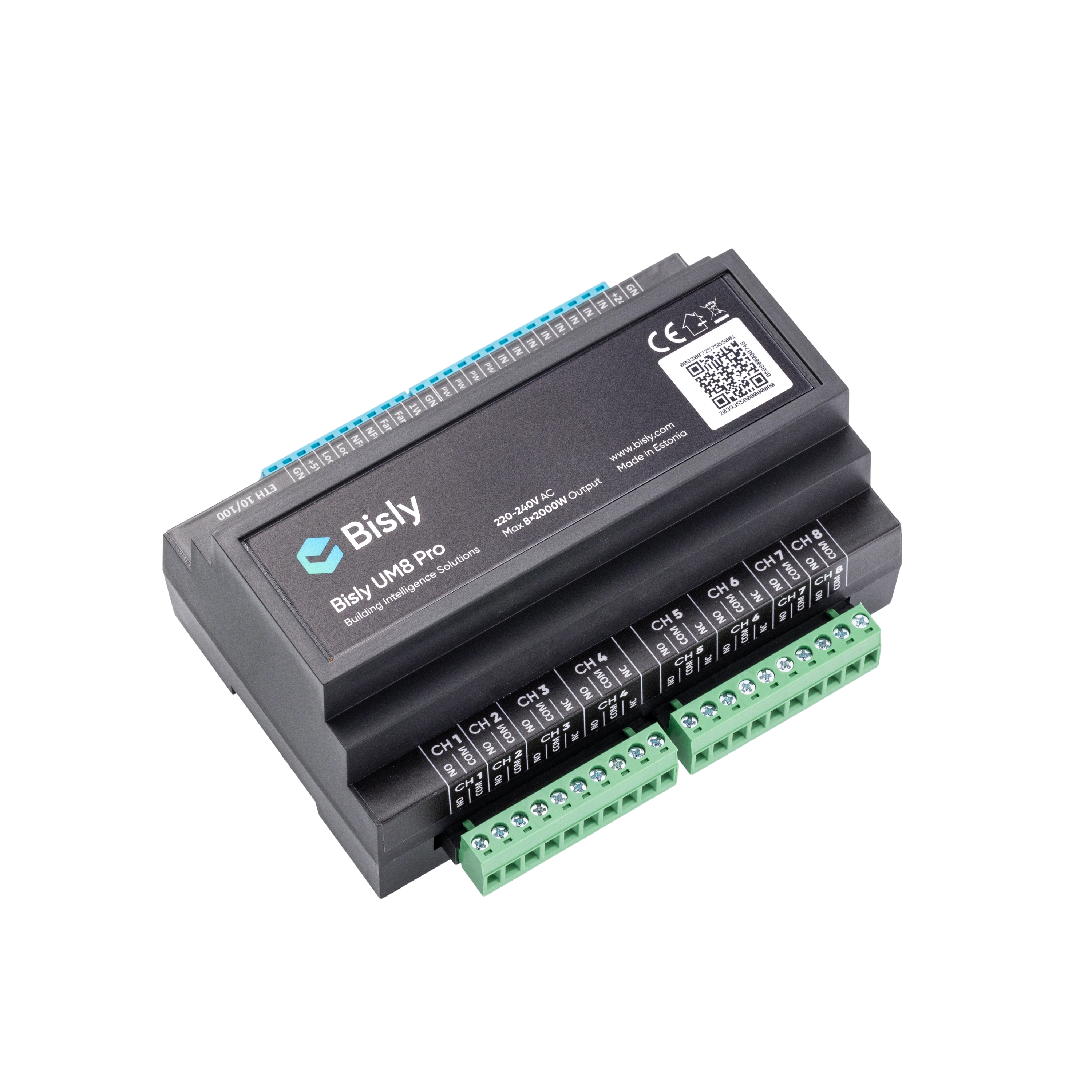

Main ControllerBisly UM8 Pro
- 8 relay outputs (4× SPST + 4× SPDT), 250 VAC 16 A
- 3 × RS-485 + Ethernet + 1-Wire bus
- 8 digital inputs, 4 analog inputs, 4 PWM outputs

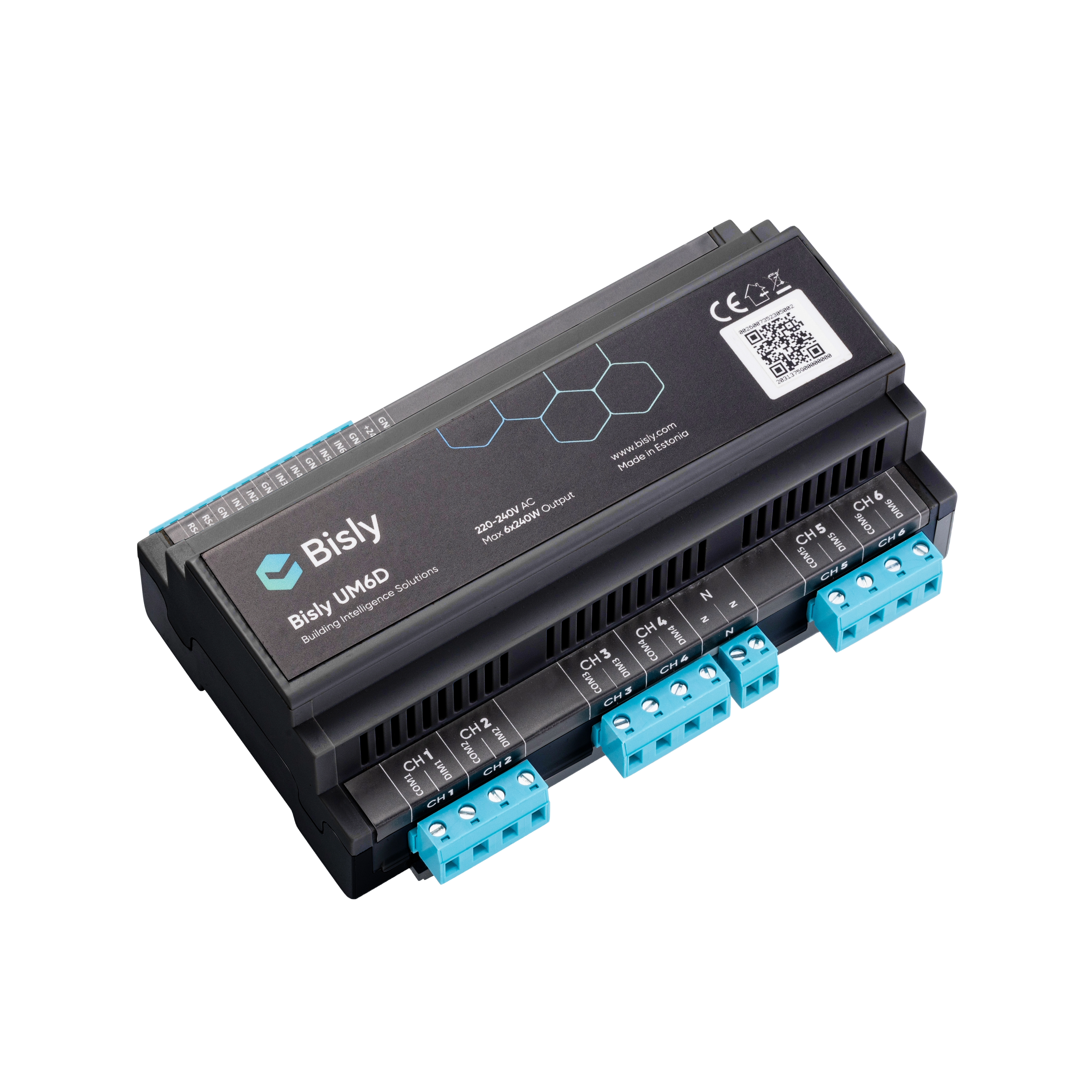

Phase-Cut DimmerUM6D 6-Channel
- 6 × 240 W independently dimmable channels
- Leading/trailing edge. Software selectable
- 6 digital inputs for impulse switches

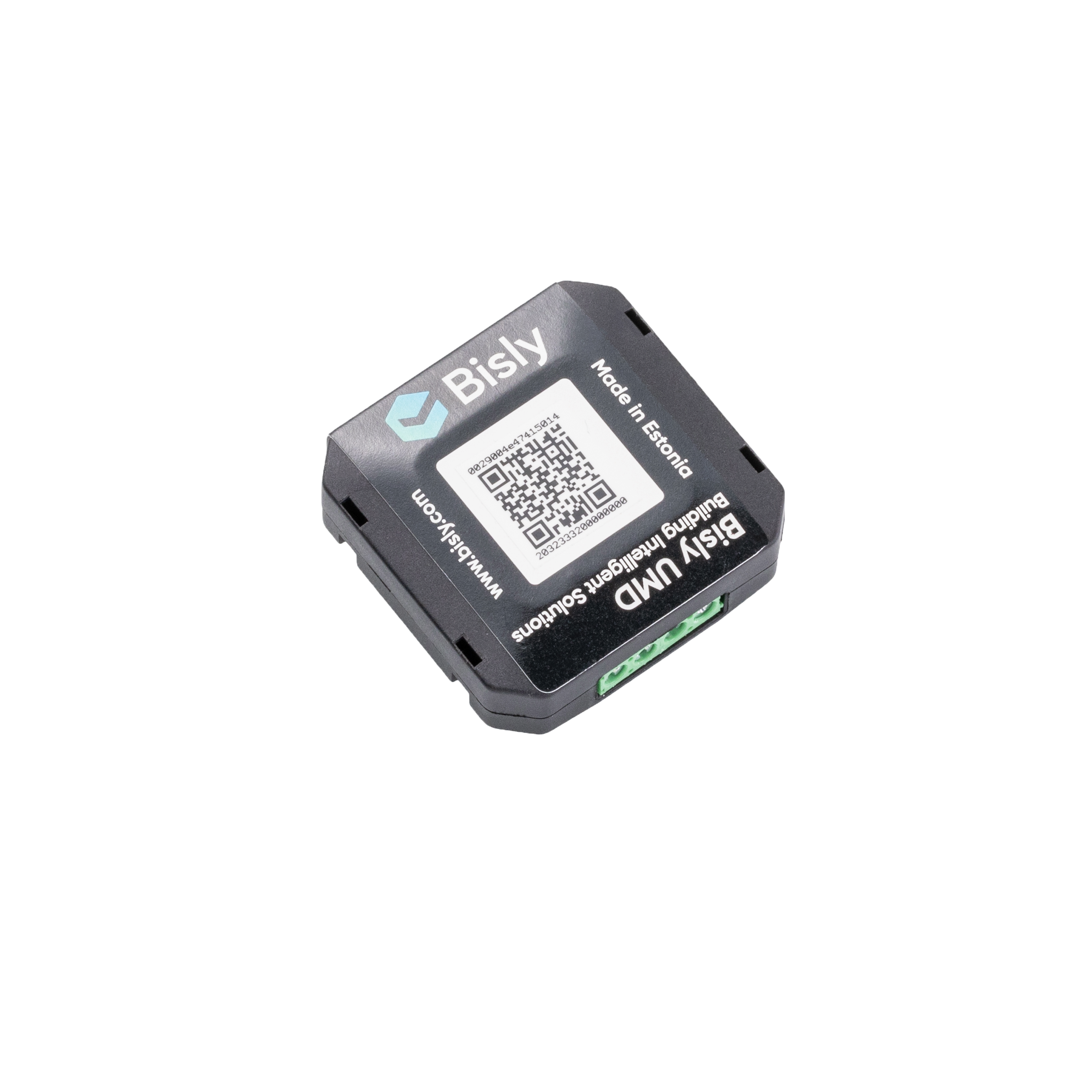

Compact DimmerUMD 2-Channel
- 2 × 220 W phase-cut dimming channels
- Fits 68 mm electrical backbox (behind switch)
- 2 digital inputs + 1-Wire bus for temp sensors

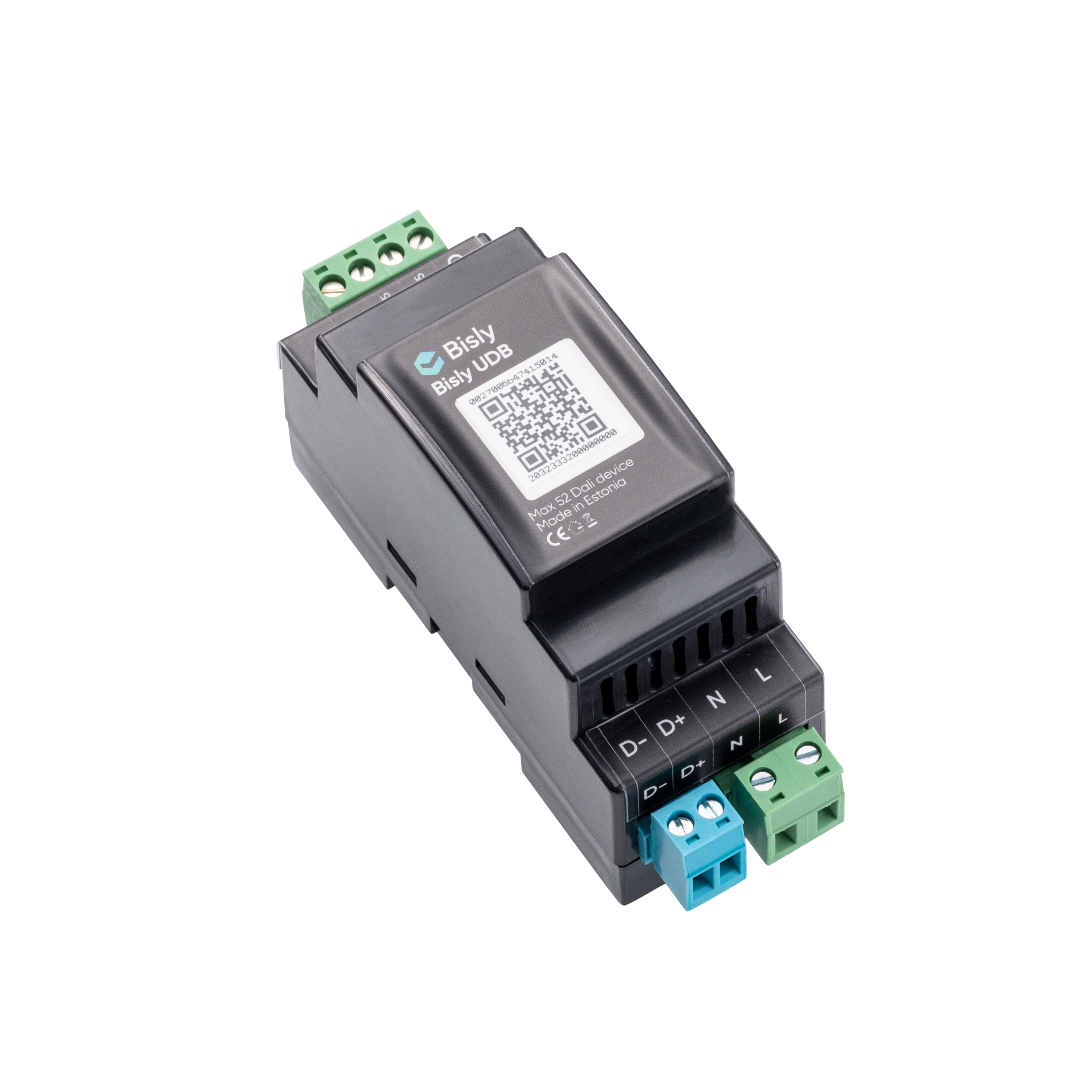

DALI ControllerUDB DALI Bridge
- DALI-1 and DALI-2 compatible
- 130 mA bus. Up to 64 DALI luminaires
- RS-485 interface to Bisly UM8 Pro
Sensors
Multifunctional sensors that measure air quality, presence and temperature. Giving the system the data it needs to act autonomously.

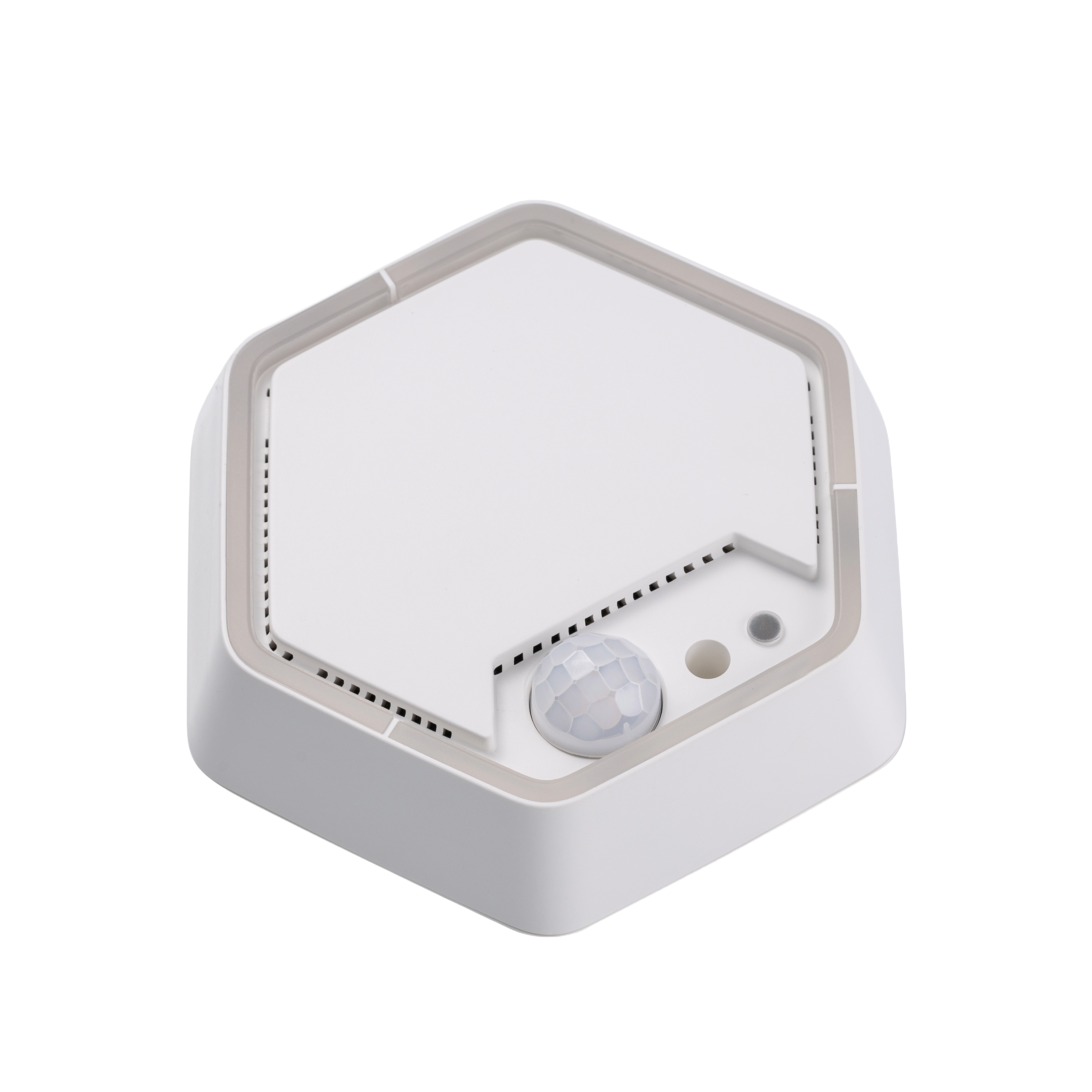

Multi-SensorUMS Supersensor
- CO₂, VOC, humidity & air temperature
- PIR presence detection (4 m radius)
- 0.1–30,000 lux + color temperature

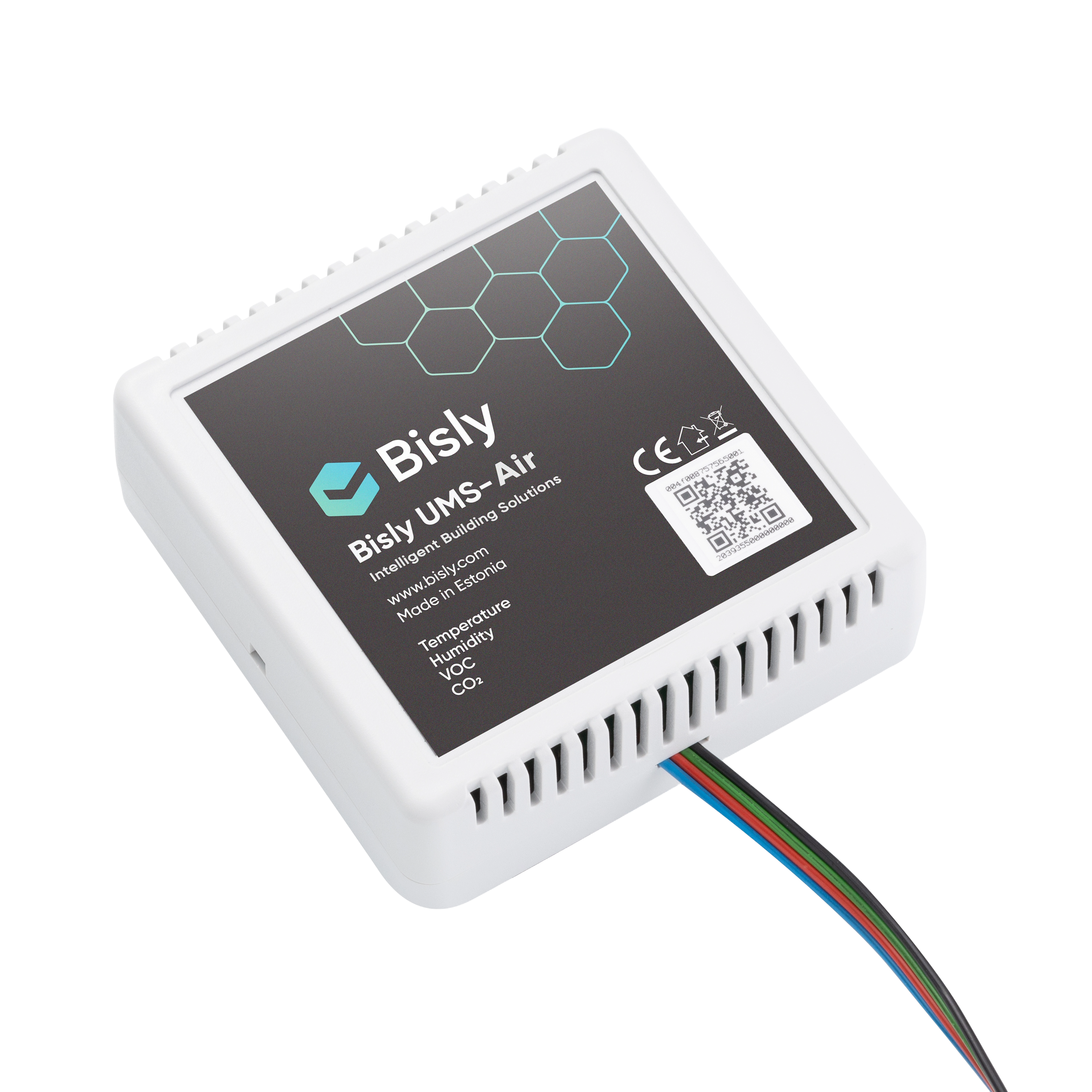

Ventilation SensorUMS Air
- Installed in mechanical ventilation duct
- CO₂, VOC, humidity, temperature
- RS-485 interface to Bisly UM8 Pro

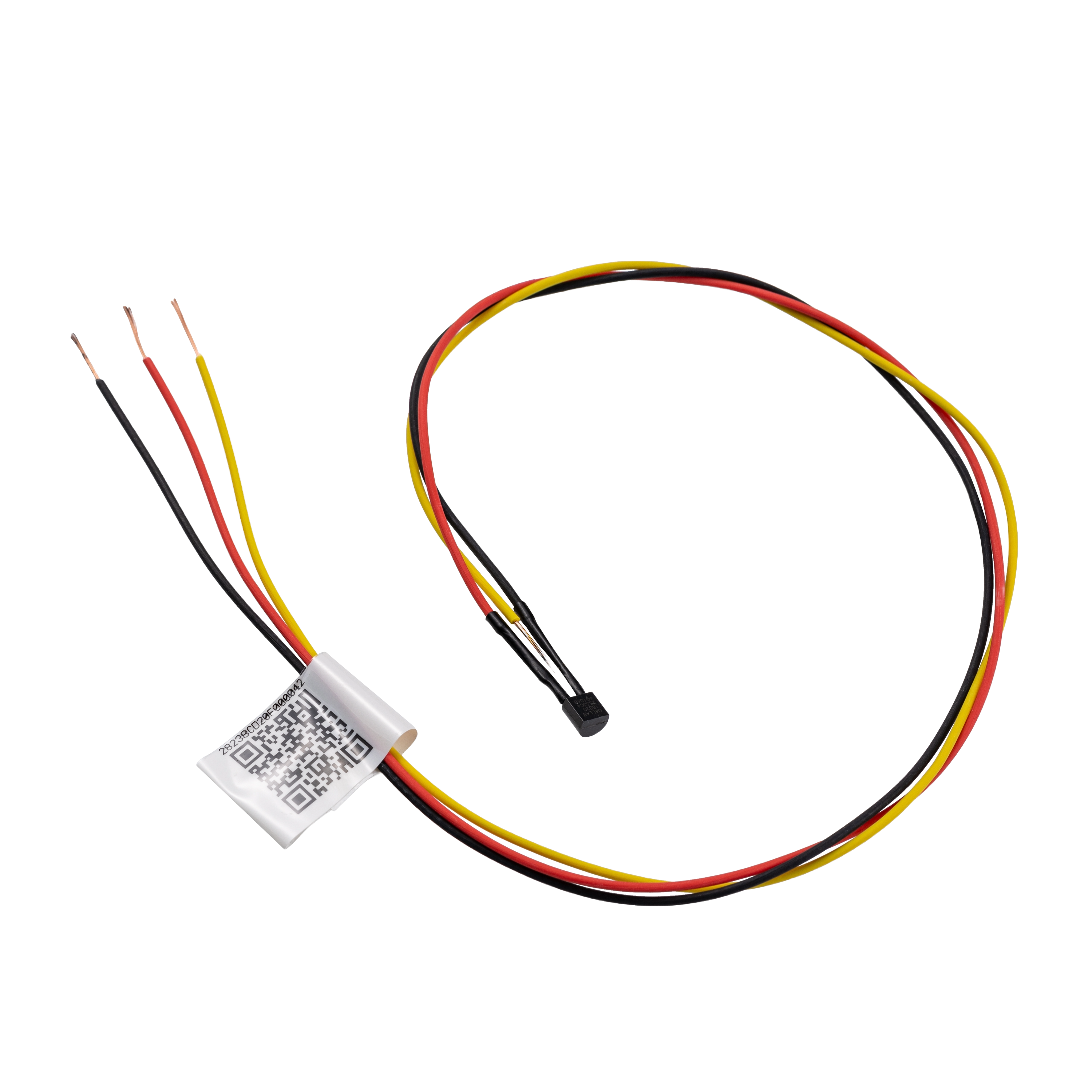

Temperature Sensor1-Wire Temp Sensor (Air)
- ±0.5 °C accuracy (−10 to 85 °C)
- Mounts in standard lighting switch socket
- 1-Wire daisy-chain. Up to 20 per bus
Floor Sensor1-Wire Temp Sensor (Floor)
- ±0.5 °C accuracy for floor temperature
- Available in 1.5 m, 3 m and 5 m lengths
- 1-Wire daisy-chain. Up to 20 per bus
Control Panels
Dedicated wall touchscreens powered over Ethernet. No separate power wiring. And they always run the latest Bisly interface.

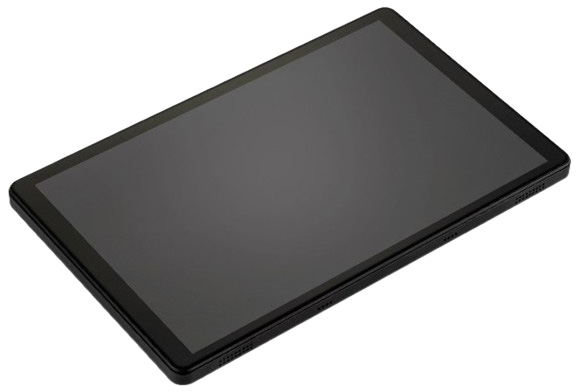

10.1" Touch PanelBisly Hub 2
- 10.1" IPS, 1200 × 1920 FHD, 250 cd/m²
- Android 14 with 5-point capacitive touch
- PoE 802.3af. Single cable for power & data
Network
Pre-configured networking layer for Bisly deployments. Server, router and switches that ship as a tested, isolated stack ready to run on day one.

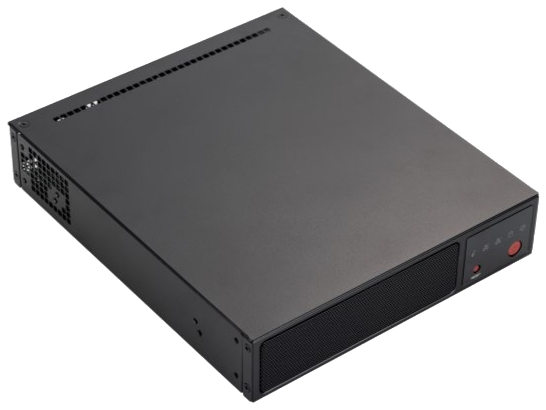

Building ServerBisly House Server
- Standard: SuperMicro 5019D-FTN4 for multi-unit
- Compact: SuperMicro SYS-E200-9A for smaller homes
- Acts as the central unit for all on-site automation

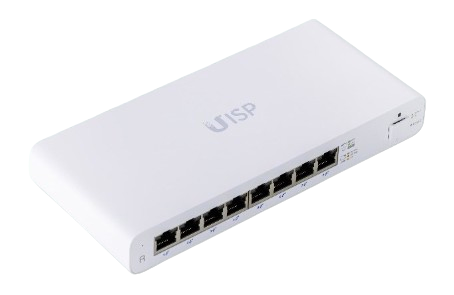

Pre-Configured RouterBisly Router
- Plug-and-play. Works out of the box, no manual setup
- Isolated dedicated LAN for Bisly systems
- Hardens building automation against cyber threats

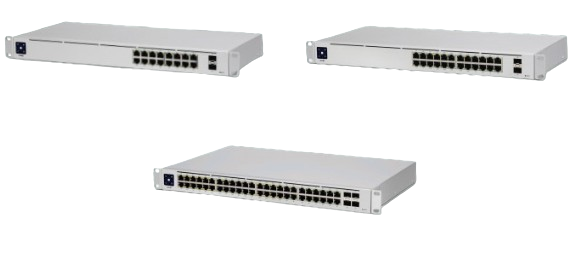

USW-16/24/48-PoENetwork Switches
- 16, 24 or 48-port PoE switches (Ubiquiti USW)
- Per-port switching, mirroring, VLAN, aggregation
- Real-time topology, device metrics and health monitoring
Access
Native integrations with the access readers and IP intercoms most projects already specify, HID, HIKvision, Inception readers and 2N-Verso / IP Style intercoms.
Access ReadersHID Readers
- Cards, NFC, Bluetooth and Bisly mobile credentials
- Basic readers and keypad readers (PIN access)
- OSDP. Encrypted, two-way reader communication

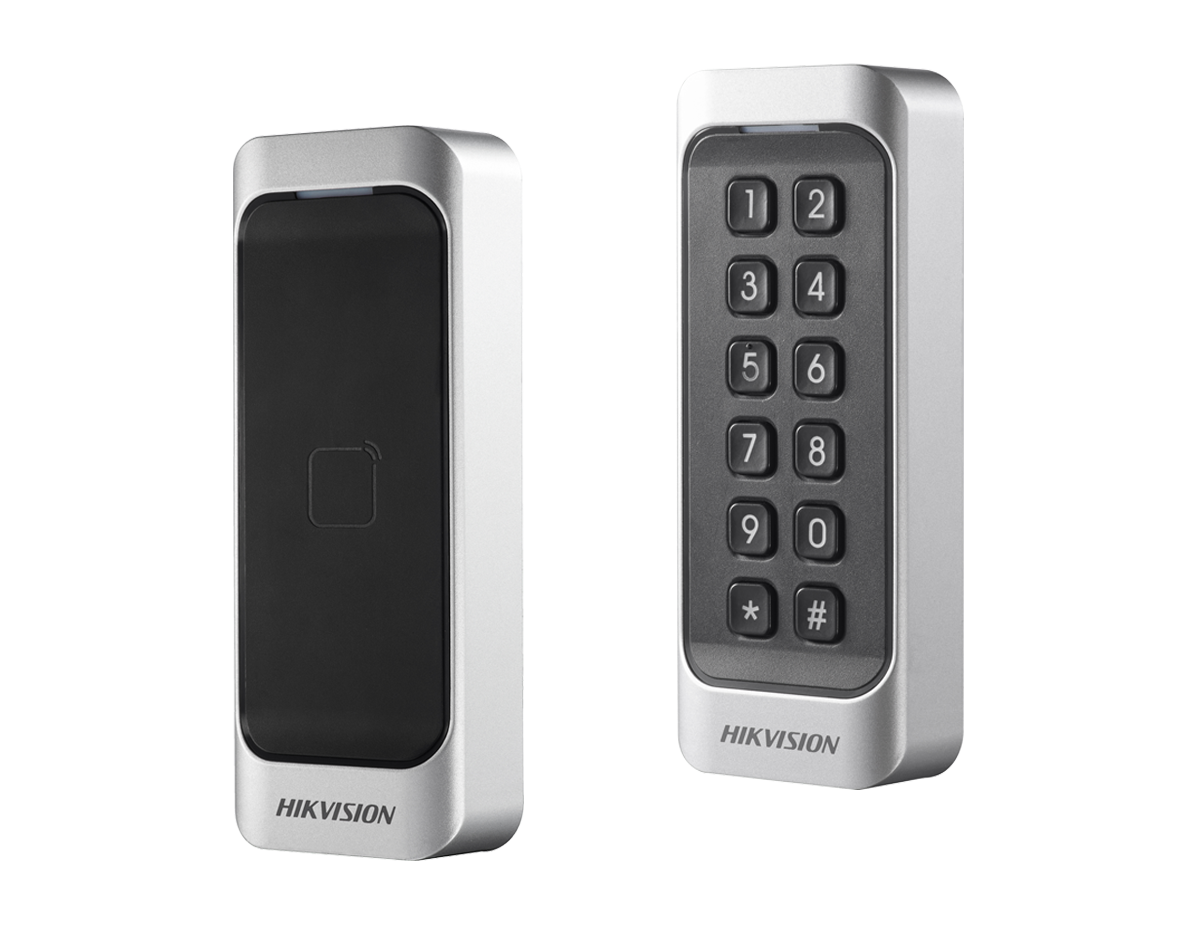

Access ReadersHIKvision Readers
- Native integration into the Bisly access layer
- Card and PIN credential support
- Centralised management alongside Bisly access modules
Access ReadersInception Readers
- Multi-credential reader support out of the box
- Time-bound and one-time access codes per booking
- Driven from PMS or the Bisly Tenant App

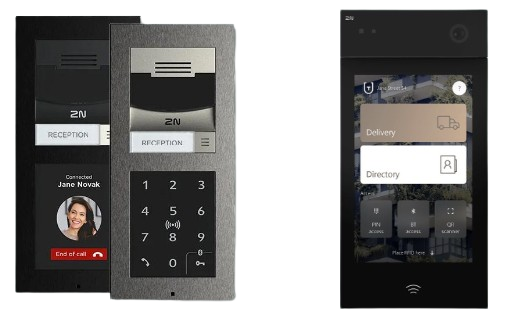

IP Door Intercoms2N-Verso & IP Style Intercoms
- Modular IP intercoms with Full HD camera + IR night vision
- PIN, NFC, Bluetooth, fingerprint and QR code entry
- SIP and ONVIF. Slot directly into Bisly access flows
Cameras
Connect on-site IP cameras straight to the Bisly platform. Multi-vendor support across LTS, Hanwha, Bosch and HIKvision (including ANPR).
IP CamerasBosch IP Cameras
- Live feeds inside the Bisly building dashboard
- Same platform as access control. Single pane of glass
- Designed for multi-tenant and commercial portfolios
IP Cameras + ANPRHIKvision IP Cameras
- HIKvision IP cameras for general surveillance
- HIKvision ANPR cameras for license-plate access
- Plate-driven gate and parking automation
IP CamerasLTS IP Cameras
- Centralised live feed management
- Real-time monitoring for asset managers and tenants
- Seamless integration with the Bisly BMS
IP CamerasHanwha IP Cameras
- Hanwha enterprise IP cameras supported natively
- Same dashboard as access control and security
- Ideal for portfolio-wide visibility
Metering
Plug Bisly into the building's utility meters, heat, water, gas and electricity, over M-Bus for transparent per-unit billing.

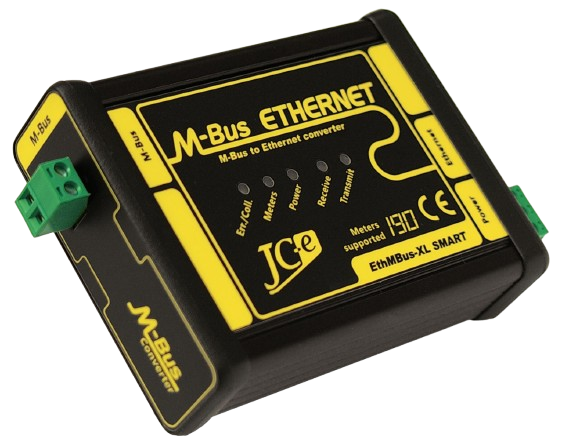

M-Bus ConverterEthMBus-XL LITE
- DIN-rail M-Bus to Ethernet converter
- Up to 190 M-Bus slave devices per converter
- TCP/UDP or virtual COM port. Works over the LAN
